FA503型細紗機
發布時間：2012-09-20
.jpg)

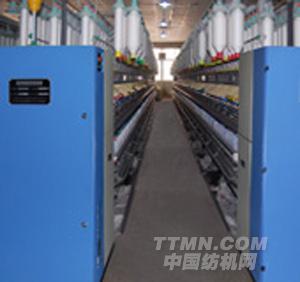

FA503型細紗機
FA503型細紗機是我廠生產的主要產品之一，本機可用于棉及棉型化纖的純紡或混紡，調換部分零件后，還可適用65mm以下中長纖維。
Model FA503 Ring Spinning Frame is one of our major products,This machine is used for processing cotton and cotton type synthetic fibers,or their biends Medium length synthetic fibers,up to 65mm can be processed on this machine if a few parts are replaced.
主要特征 MAIN FEATURES
車頭傳動
HEADSTOCK GEARING
車頭內的牽伸、捻度、卷繞變換齒輪，均采用統一的模數、孔徑和寬度，互相間可以通用。調換一只牽伸齒輪，可以改變機臺兩側的總牽伸倍數。
The whole system of draft gearing inside the cover is of strong construction with the assurance of correct transmission.
牽伸裝置
DRAFT
牽伸裝置采用螺旋彈簧加壓的搖架，壓力穩定可靠，操作方便。
The drafting roller weighting by spring pendulum arm reliable and easy to operate.
導紗板和鋼領板為牽吊式升降，運動平穩，紗管成形能適應高速絡筒要求。
The lifting of lappets and ring rails is actuared by means of tapes.so that smooth movement is ensured.The cop building mechanism design has taken the require-ment of high speed cone winding process into consideration.
導紗板和鋼領板為牽吊式升降，運動平穩，紗管成形能適應高速絡筒要求。
The lifting of lappets and ring rails is actuared by means of tapes.so that smooth movement is ensured.The cop building mechanism design has taken the require-ment of high speed cone winding process into consideration.
自動化程度高
HIGH AUTOMATION
1.紡紗過程中，任何時候關車，能自動適應停車。
Whenever the frame is required to stop during spinning the frame can stop automatically at a proper position.
2.如需提前落紗，能使鋼領板自動下降及適應停車。
If doffer is required in advance.the ring rails will automatically wind down and stop at a proper position.
3.滿管后，鋼領板自動下降及自動適應停車。
For full bobbins,the ring rails will down to starting position automatically.
4.開車前能使鋼領板自動復位。
While starting the machine,the ring rails will reset themselves at starting position automatically.
5.落紗前能自動接通落紗電源。
Before the doffing,the doffer electric source can be connected cutomatically.
6.開車后低速自動切換高速。
After start of machine,the speed is changed from low to high automatically.
主要規格與技術參數：
錠數：504；492；480；456；420；408；396；384；96
錠距(mm)：70
錠速(rpm)：10000～17000
鋼領直徑(mm):38;42;45
筒管長度(mm)：180；190；205；230
適紡號數(tex)：6～96
牽伸倍數：10～50
牽伸型式：三羅拉，雙皮圈，搖架加壓
羅拉直徑(mm)：前、中、后均25
粗紗卷裝(mm)：吊錠Φ135×320
(max)Φ152×406
粗紗架：托錠支承或單層四、六列吊錠支承
電動機：
主電動機 380伏，15千瓦(456錠及以下)
380伏，17千瓦(456錠以上)
吸風電動機 380伏，1.5千瓦(420錠及以下)
380伏，2.2千瓦(420錠以上)
鋼領板升降電動機：380伏，180瓦
全機長度(mm):L=1890+(N/2-1)×70,(N-錠數)
全機寬度(mm):1000
全機高度(mm):2050
MAIN SPECIFICATIONS AND TECHNICAL DATA:
No.of spindles: 504；492；480；456；420；408；396；384；96
Spindles guage:70mm
Spindles speed: 10000～17000rpm
Ring dia: 38;42;45mm
Tube length: 180；190；205；230mm
Counts:6～96 tex
Draft:10～50
Draft system:3-roller,double apron,pendulum weighting arm
Roving package:front,middle,back all 25mm
Roving package: Φ135×320
suspension bobbin(max)Φ152×406mm
Creel:roving bobbins rested on the holders or single tier.
4.6 row with suspension bobbins
Motors:
Main motor:380V,15Kw(for spindle no.≤456)
380V,17Kw(for spindle no.>456)
80V,1.5Kw(for spindle no.≤420)
380V,2.2Kw(for spindle no.>420)
Ring rail lifting motor:380V,180W
Machine length:L=1890+(N/2-1)×70mm(N:No.of spindles)
Machine width:1000mm
Machine height:2050mm
