WQ480型圓網印花機

發布時間：2011-09-02

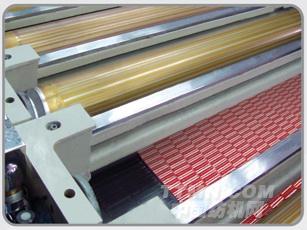

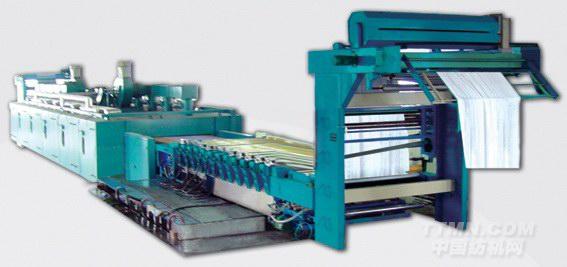

WQ480型圓網印花機

圓網印花機

ROTRY SCREEN PRINTING RANGE

主要規格

MAIL SPECIFICATIONS
        機械公稱寬度：1800-3000mm
       （最大印花寬度1650-2850mm）
        機械車速：4-80m/min
        印花主機：
        圓網周長：640AL 819AL 914AL 1018AL
        印花套色素：4-16套
        對外精度：≤0.2mm
        刮印方式：刮刀或磁棒
        進布方式：布車進布，面布操作臺在左手，漿泵在右手邊
        電器控制及操作：PLC控制；人機介面操作
        印花漿料供應：不銹鋼內齒輪泵供漿。
        印花導帶：進口
        Mechanical nominal width：1800-3000mm
        (Maximum printing width：1650-2850mm)
        Mechanical speed:4-80m/min
        Printing Host:
        Round-net circumference: 640AL 819AL 914AL 1018AL
        Number of priting set: 4-16sets
        Precision: ≤0.2mm
        Way of Scraped-printing: scraper or magnetic-stick
        Way of fabric-input: fabric-input by machine,fabric and starching pump are respectively on the left
        and right of control board
        Electrical control & operation: controlled by PLC; operated with GUI
        Starch supply for printing: starch supplied by Hg inside the stainiess gear
        Printing belt: imported

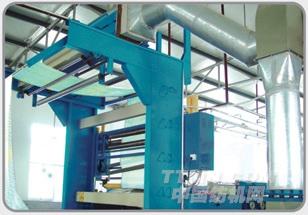

進布裝置

FABRIC-INPUT
進布有攔布器，吸塵裝置，自動對邊裝置
Unit of fabric-block,cleaner,putting margin in order automatically for fabric-input

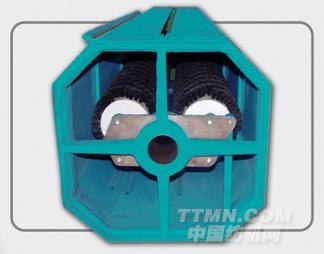

吸塵裝置

FCLEANING UNIT
二支主動毛刷輪刷毛及集塵器
Two master brush gears and cleaners

自動對邊裝置

UNIT OF PUTTING MARGIN IN ORDER AUTOMATICALLY
由光電管自動檢測探邊
Detecting margin automatically with photoelectrical tube

上漿裝置

SIZING UNIT
水溶性或其他上漿裝置選用
Two master brush gears and cleaners

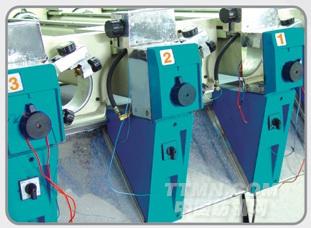

對花方式

PATTERNING
采用集體傳動和獨立傳動兩種選擇
Two choices of centralized and independent transmission

張網方式

EXPANDING NETWORK
采用氣動張網，可單獨手控也可集中控制
Expanding network pneumatically,controlled manually or centrally

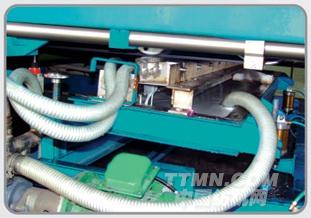

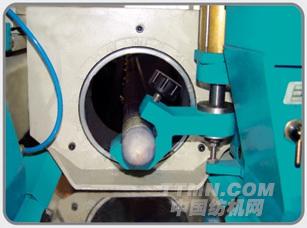

刮漿

SCRAPING STARCH
采用磁棒或不銹鋼刀片，氣動方式夾持或磁棒
Stainless blade fixed with pneumatic method or magnetic stick to scrape starch

調節座總成及配件
Adjusted platform assembly and accessory

刮漿器支承總成及配件
Scraping-starch machine assembly and accessory

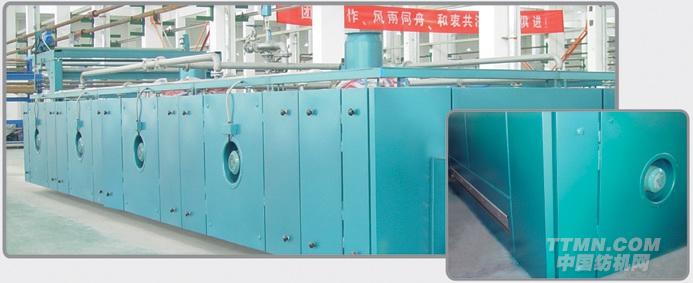

烘房

RRYER OF ROTARY SEREEN PPINTIN MCHINE
進布有平進或斜進布兩種，烘房采用三層穿布，積木式設計，每室烘房有二只循環風機、四只散熱器，噴風由上、中、下三處同時直接噴向織物表面。
散熱器：鋁輥軋片式，散熱面積約70㎡
熱源：蒸氣或油加熱
蒸發量：150kgH2O/h(室)
烘房溫度：蒸汽：100-120℃
油加熱：100-160℃
室數：4室（有效穿布長度24米）（可根據要求增加或減少）

There are two approaches of fabric-inpuf:horizontal and declining,3-level of fabric penetration is used for dried-room with block-style designed,each of which have two circulating fans and four radiators.Fabric surface are blew from upper,middle,bottom directions.
Radiator: Aluminm roller style, the raditing syface is about 70㎡
Heat source: vapor or oil-heated
Evaporation: 150kgH2O/h
Dried-room temperature: vapor approach: 100-120℃ oil-heated approach: 100-160℃
Room number: 4(24 m is the maximum length for fabric penetration)
(The length is adjusted according to special requirement)

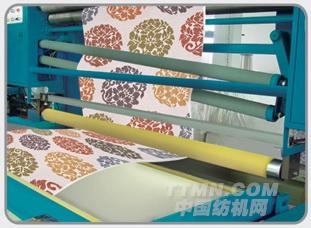

落布

FABRIC-OUTPUT
        布車落布由氣動角位儀控制，落布輥表面包覆糙面橡皮，壓布輥裝置采用手動壓布并配有靜電消磁裝置。
        全機裝機功率：約90KW
        全機重量：約33-41噸
         Fabric-output is controlled by pneumatic angle apparatus,whose roller is wrapped with coarse eraser on the surface;
         Fabric-pressed roller is controlled manually,and equipped with unit of static electricity for magnetremoval.
         Total power:abour 90KW
         Total weight:about 33-41T

640型、754型、819型、914型、1018型
網架總成及配件
Network-shelf supports assembly and its accessories have following models:640,754,819,914,1018

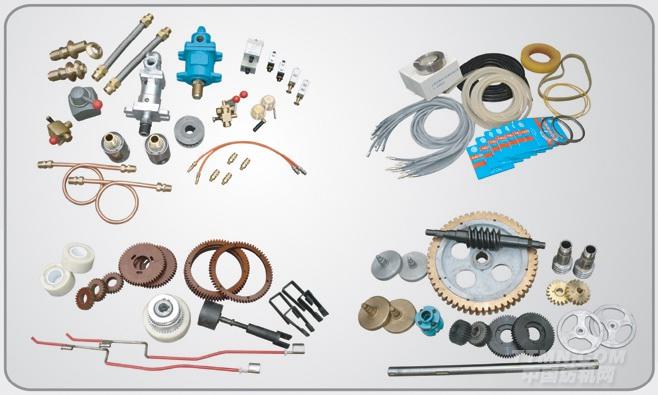

圓網刀片、圓網軸承、夾緊管、膠木齒輪、剎車、離合器、曲線輪、聯軸節等
Round-net blade,round-net bearing,nip tube,bakelite gear,brake,clutch,curvilinear wheel,joint

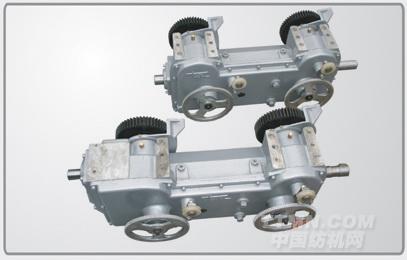

302型、303型對花齒輪箱
302,303 for patterning gear wheel box and accessory

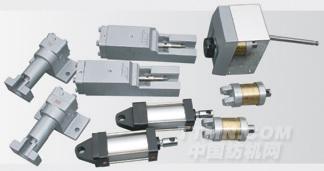

支承氣缸、張網氣缸、加壓棍氣缸、水洗氣缸、刮刀氣缸
Support cylinder,net expansion cylinder,pressurized stick cylinder, water-washing cylinder,scraper cylinder

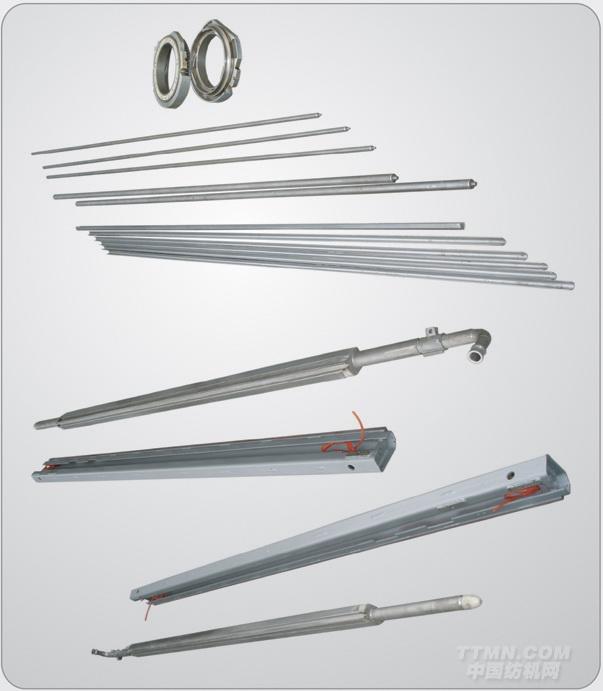

磁臺、刮漿器、磁棒、卡盤、網梁
        用于：刮刀型改造為磁棒圓網印花
        Magnetic plate,scraping-starch machine,magnetic stuck,block plate,net-shelf application:reform the round-net
         printing fromscraper styleto magnetic-stick style

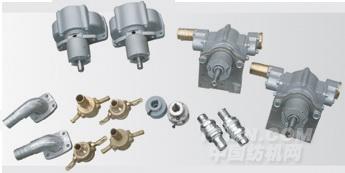

不銹鋼色漿泵及配件、彎管、快裝接頭
Stainiess pulp colour pump,bend,simple joint and accessory
